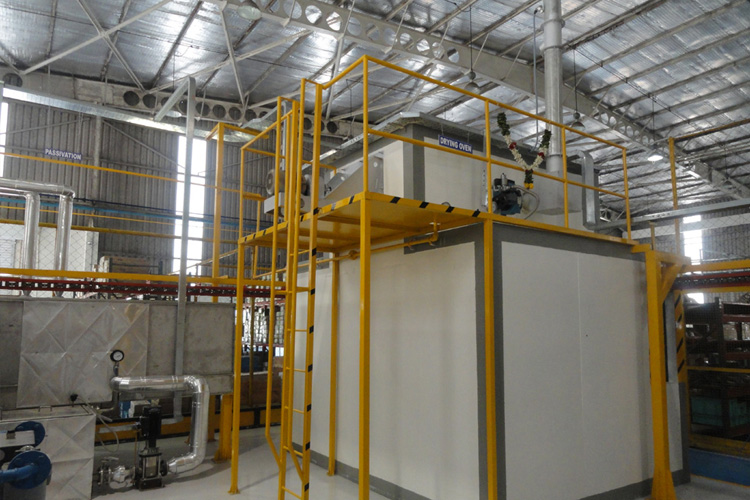

Water Drying

The dip pretreatment process calls for a typical tank type water drying oven. The same overhead monorail Hoist/Crane, which is been used for dip pre-treatment process shall be used as a material handling for this kind oven construction.

The modular constructed will male-female type insulated GI panels and internal GI Plenum chamber to equalize the circulating hot air pressure. This will ensure maimum heat transfer to the components, and minimum heat transfer to outside atmosphere.

The heat source can be Electrical, Diesel fired, Pressurized Hot water piping, LPG fired or any other special fuel. We have the designs to get maximum efficiency out of the system. The dip tank type of water drying ovens shall be with a door on top, which shall be closed during operation. The maximum temperature shall be 1200C. The thickness of the insulated panel would be 100mm with 48 kg/m3 rock wool density.

The controls are provided to control heaters/burners, circulating hot air blowers, automatic door, and temperature.
