Down Draft Water Wash

The floor conveyorised painting line will have downdraft water wash booth because of high consumption of paint and also may be usage of reciprocator with auto guns.

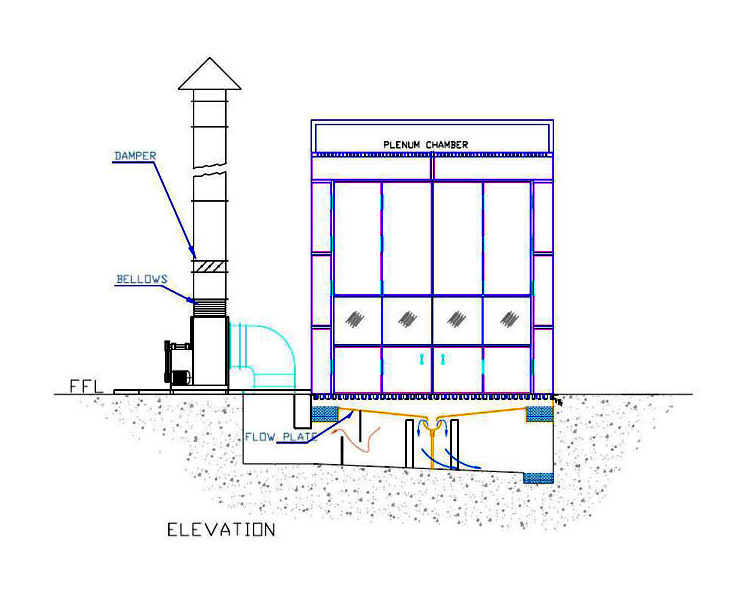

The modular constructed will have a water tank underneath and a water wall made out of SS, by which we will have a smooth and a thin flow of water from sides to the center.

The suction will be effective in the downwards and operator needs to face the gun always towards water-wall during coating. If the component calls for all sides coating, the operator can go around the object and coat. otherwise, if the size of the booth is big, then two operators can simultaneously do the painting.

The booth can be made pressurized (dust proof coating system), by pushing an external air from Air Supply Unit (ASU).
